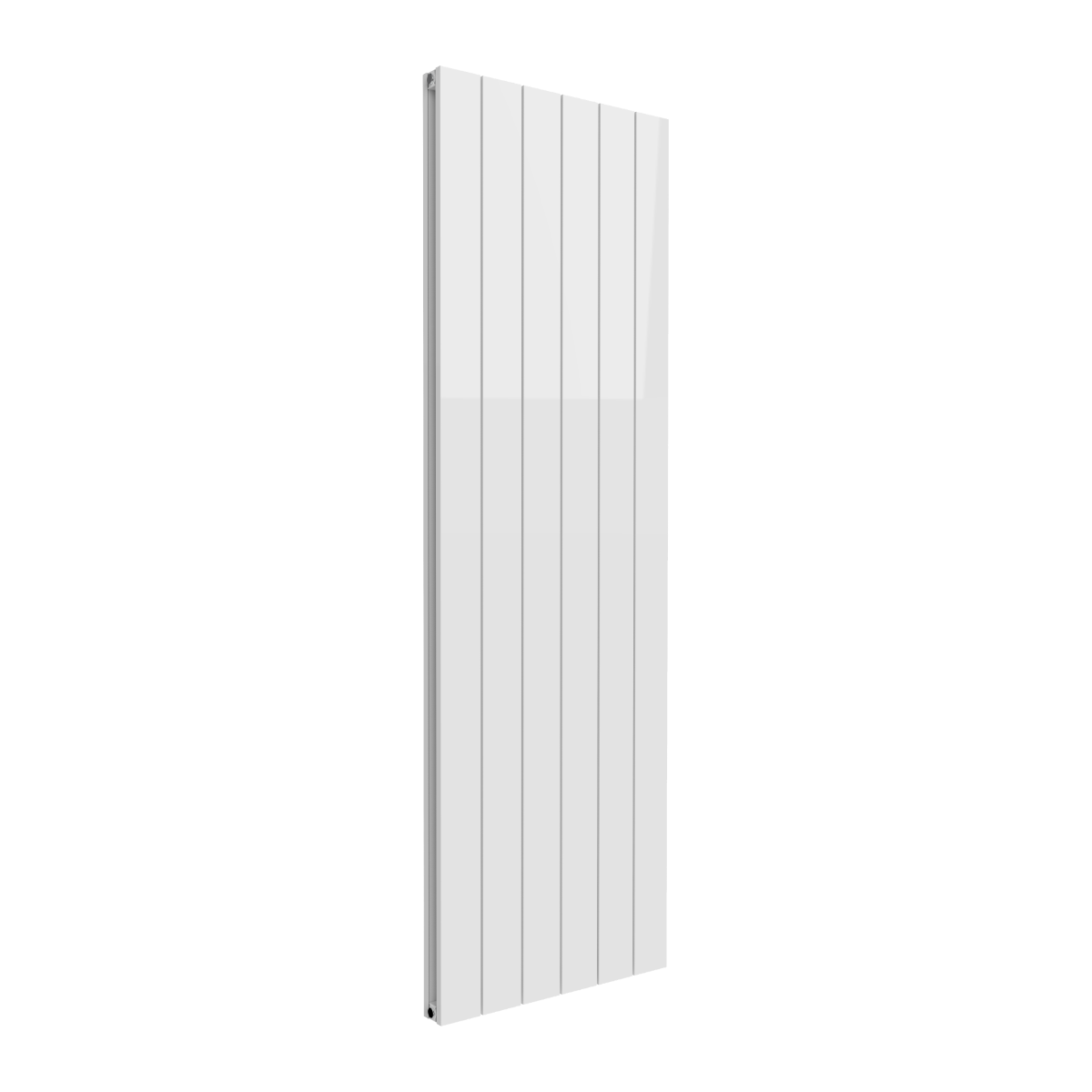

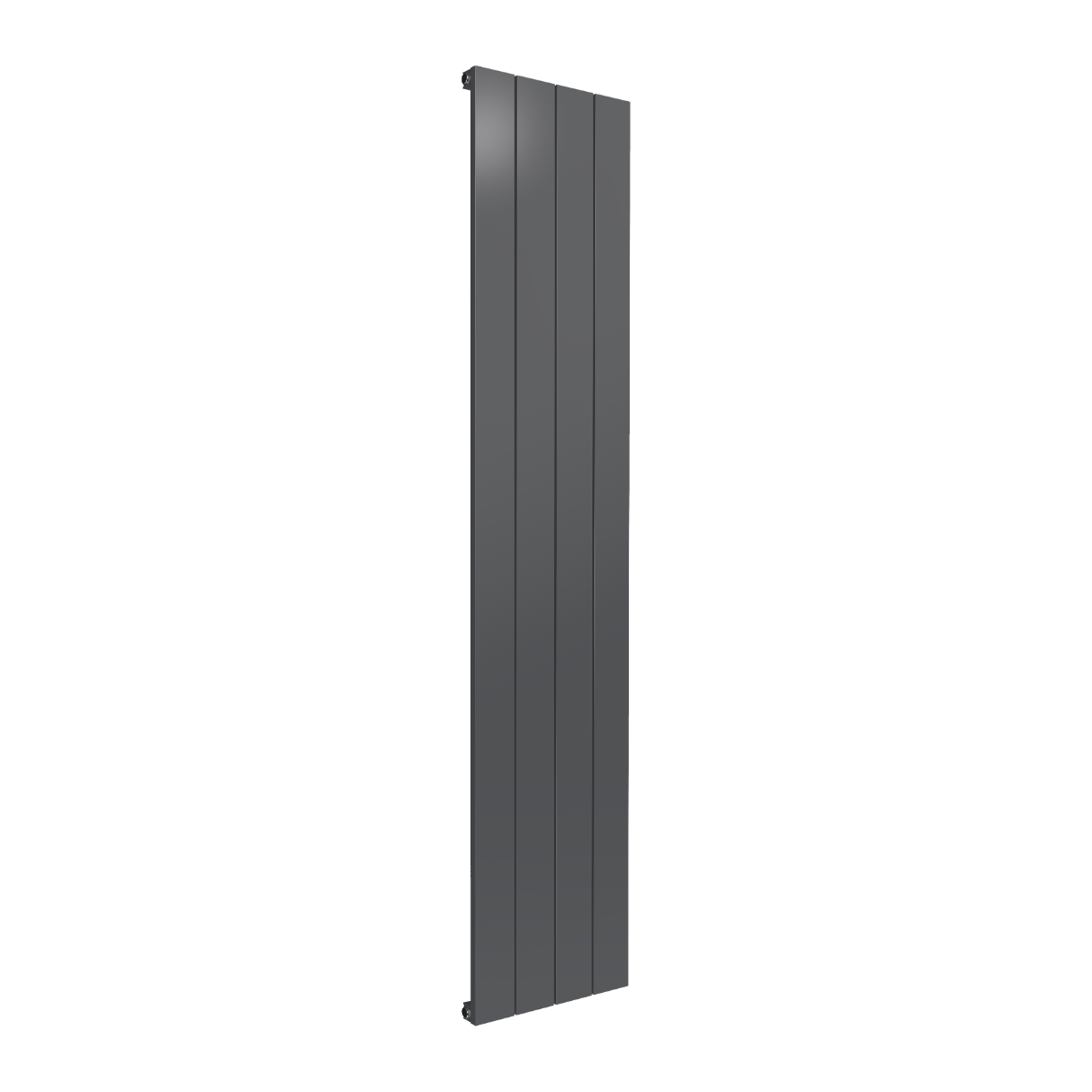

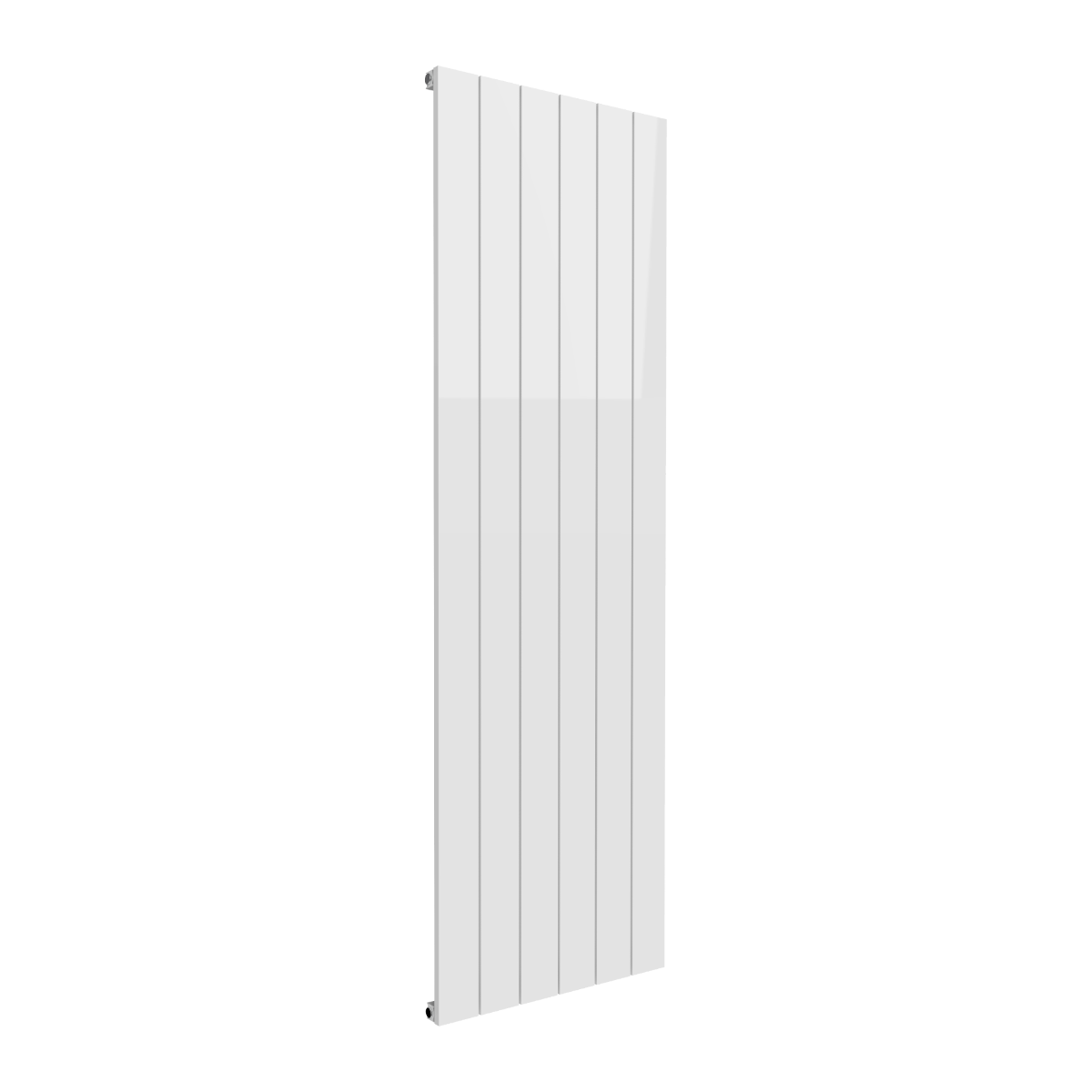

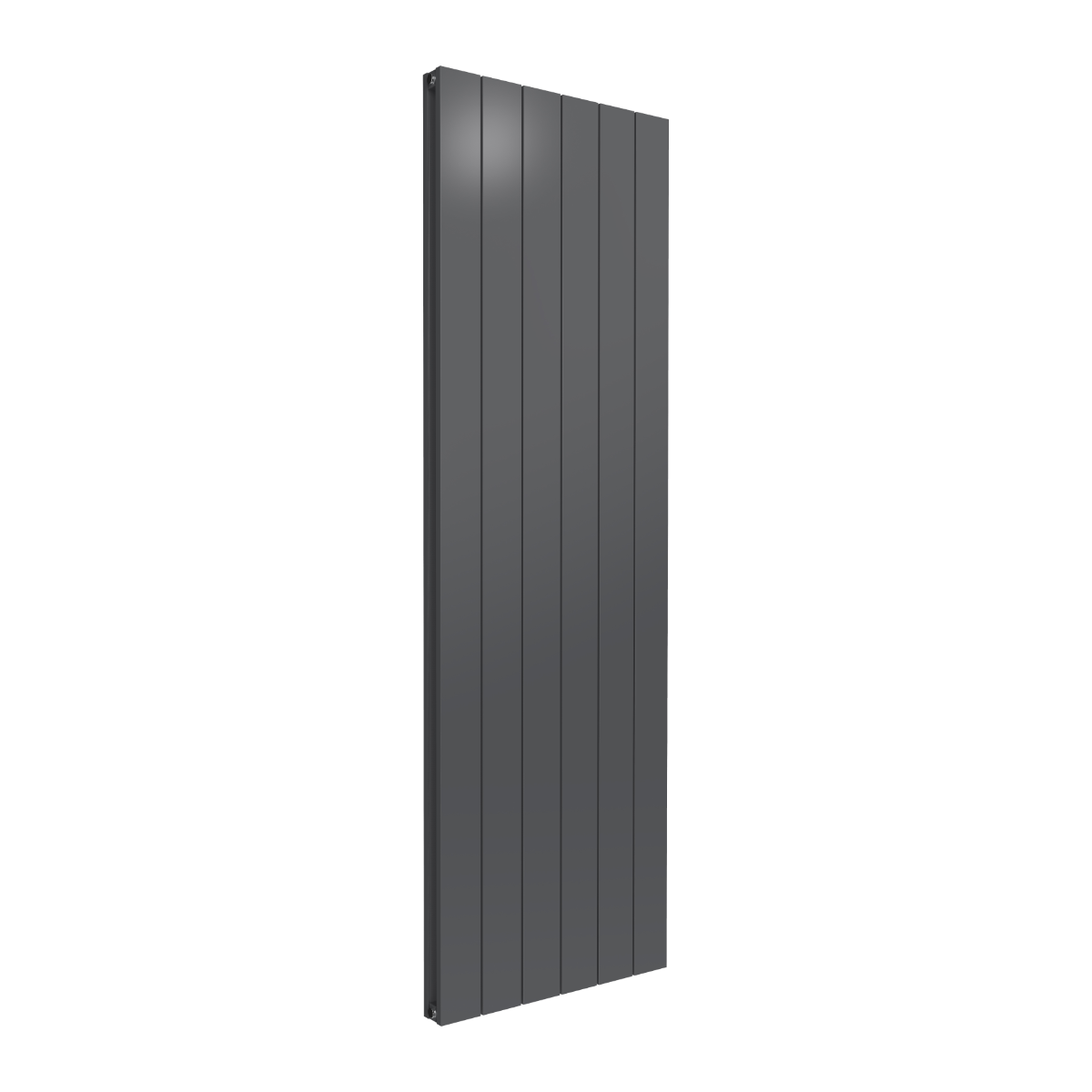

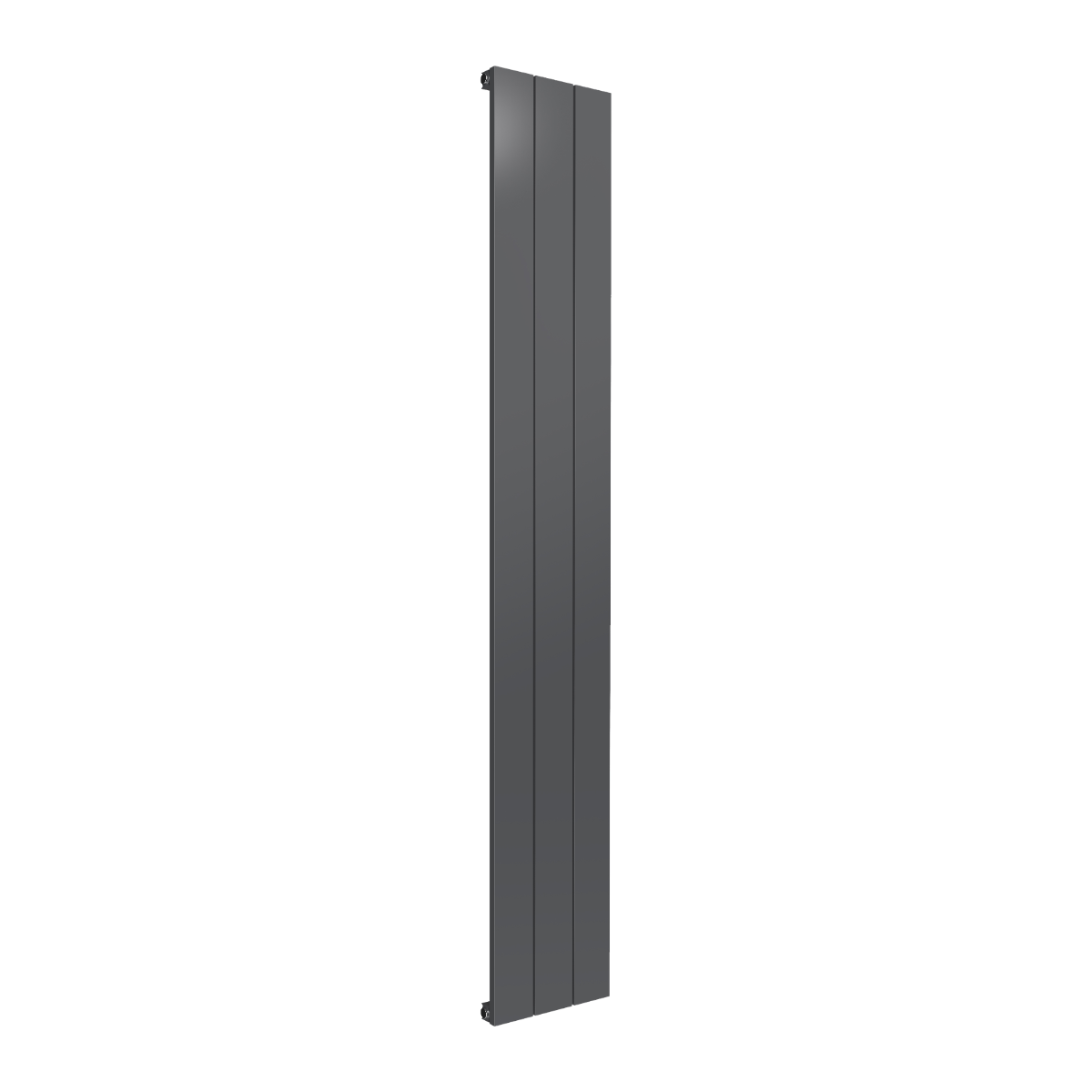

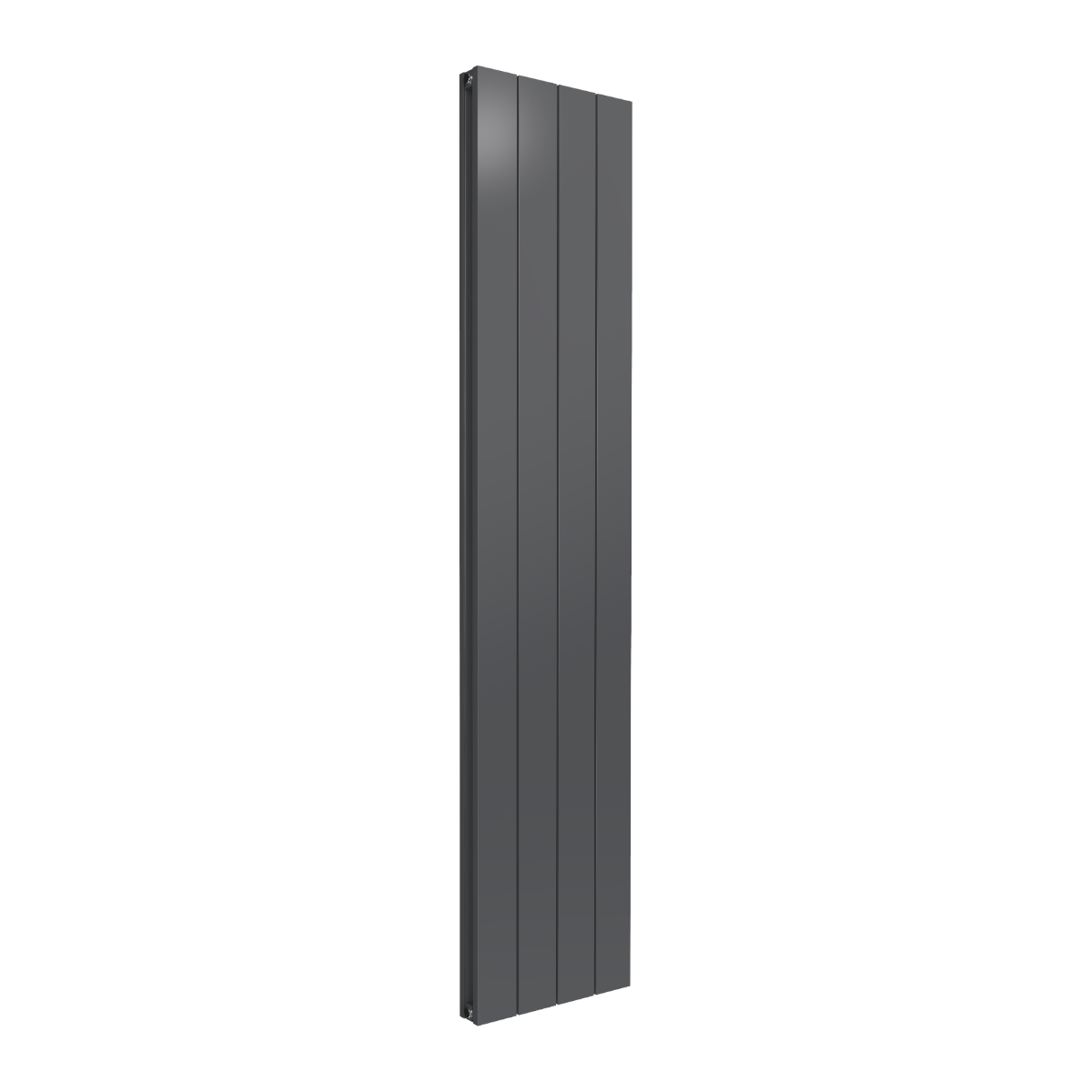

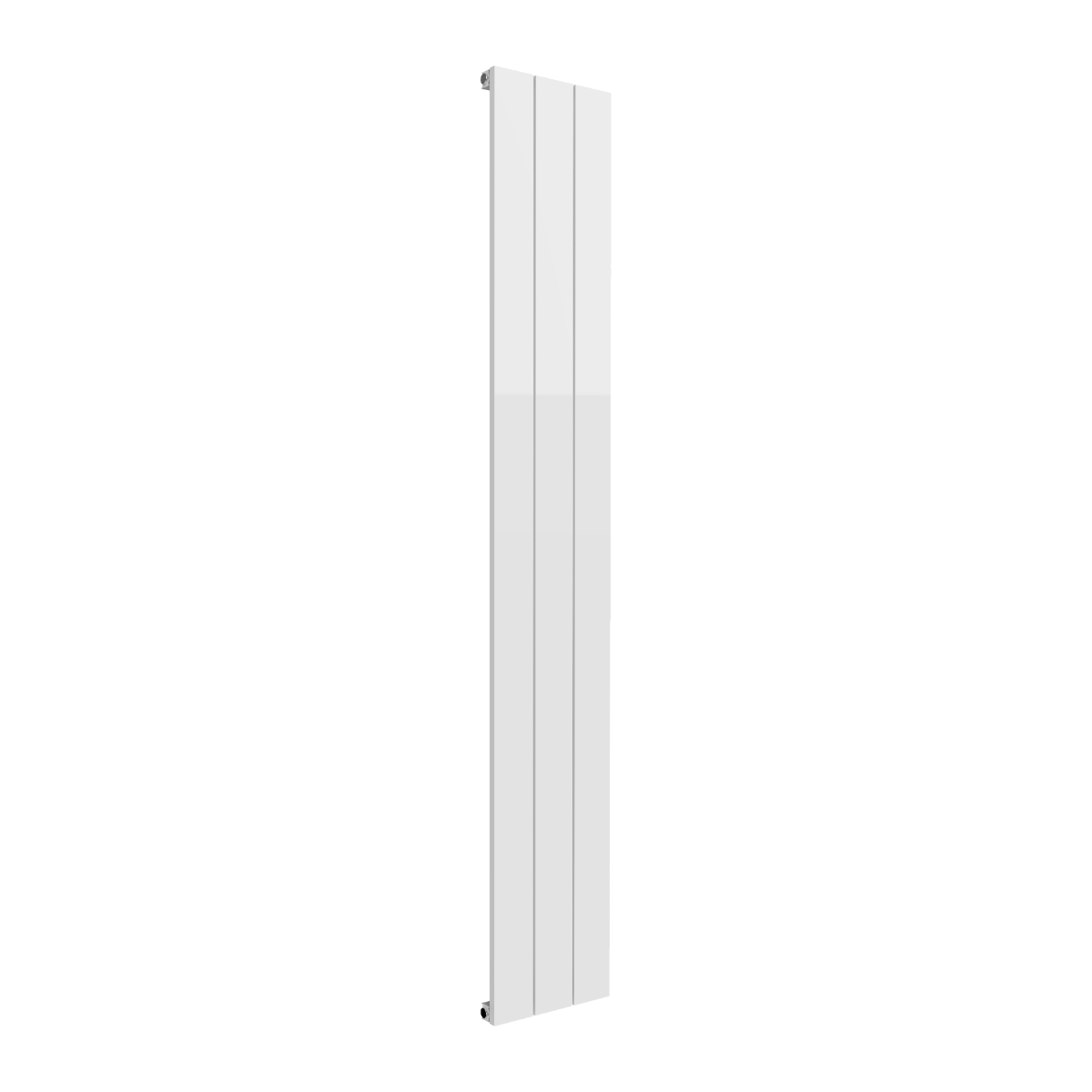

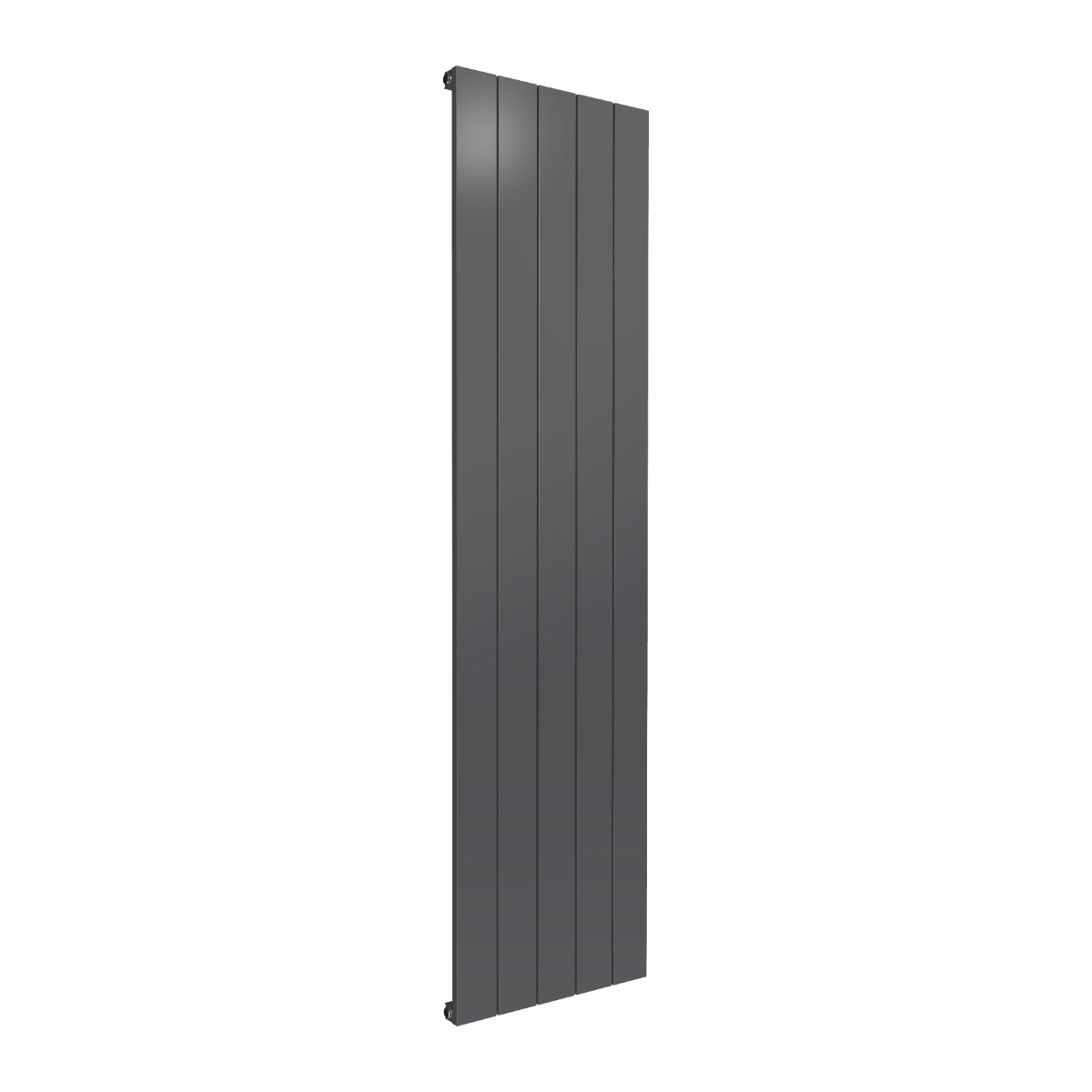

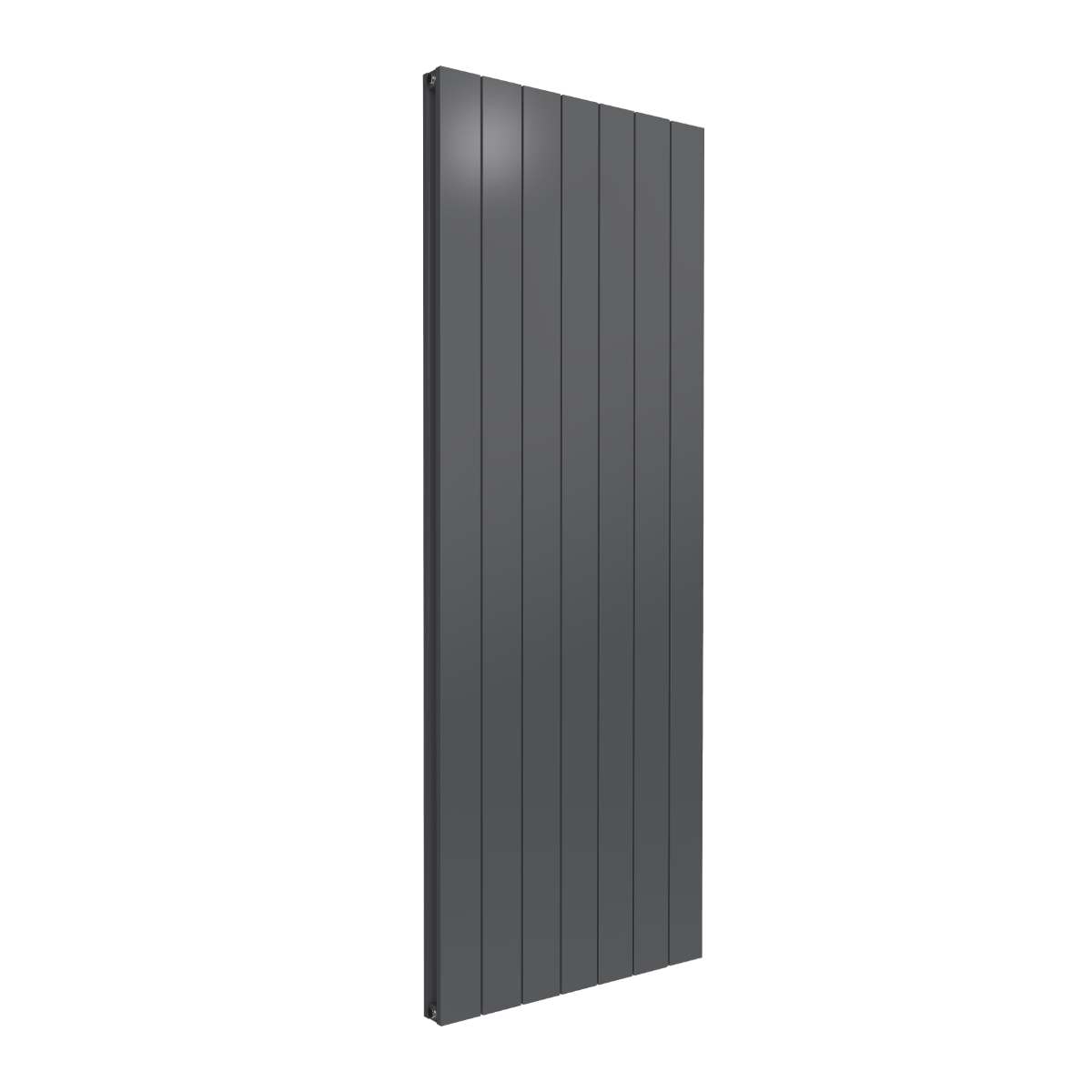

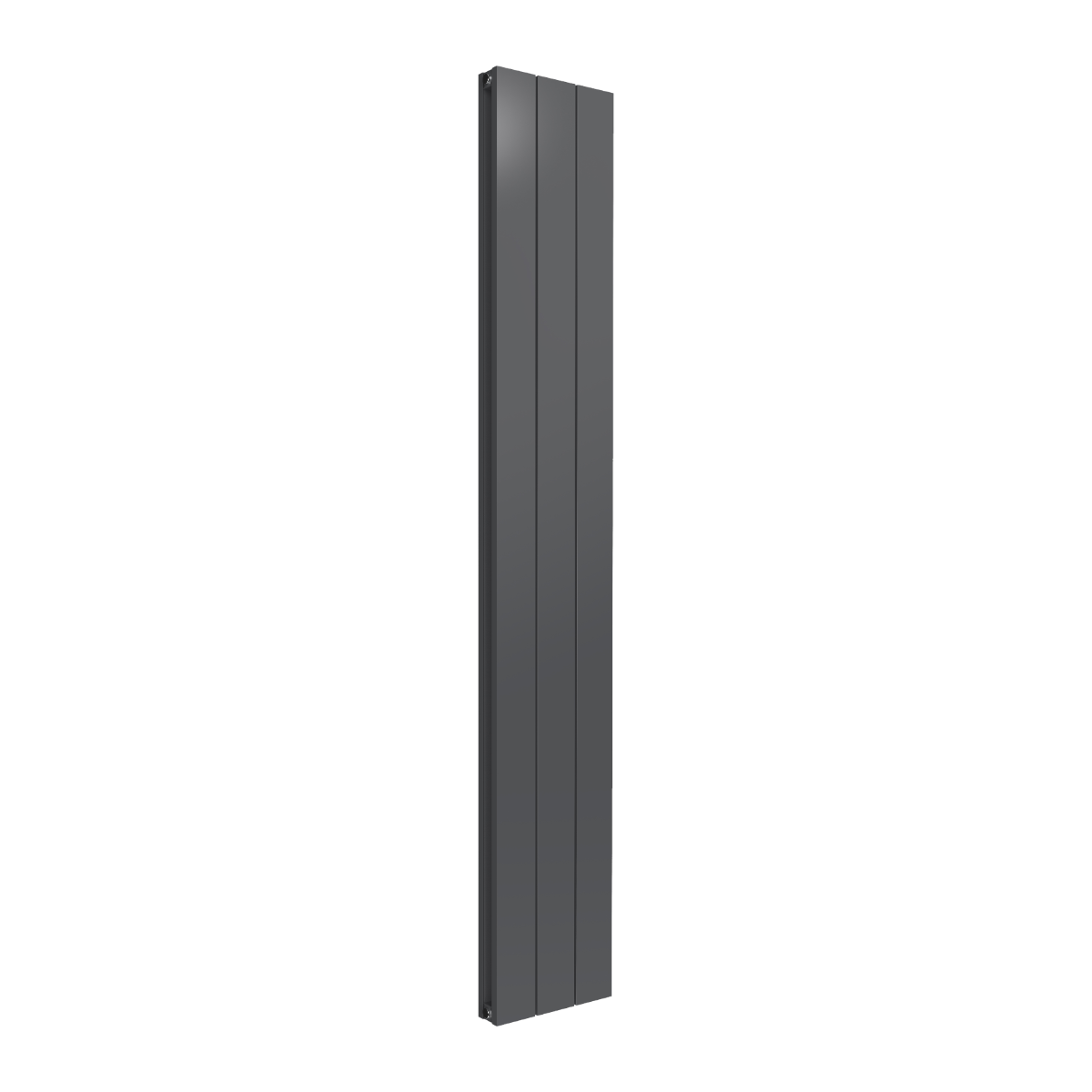

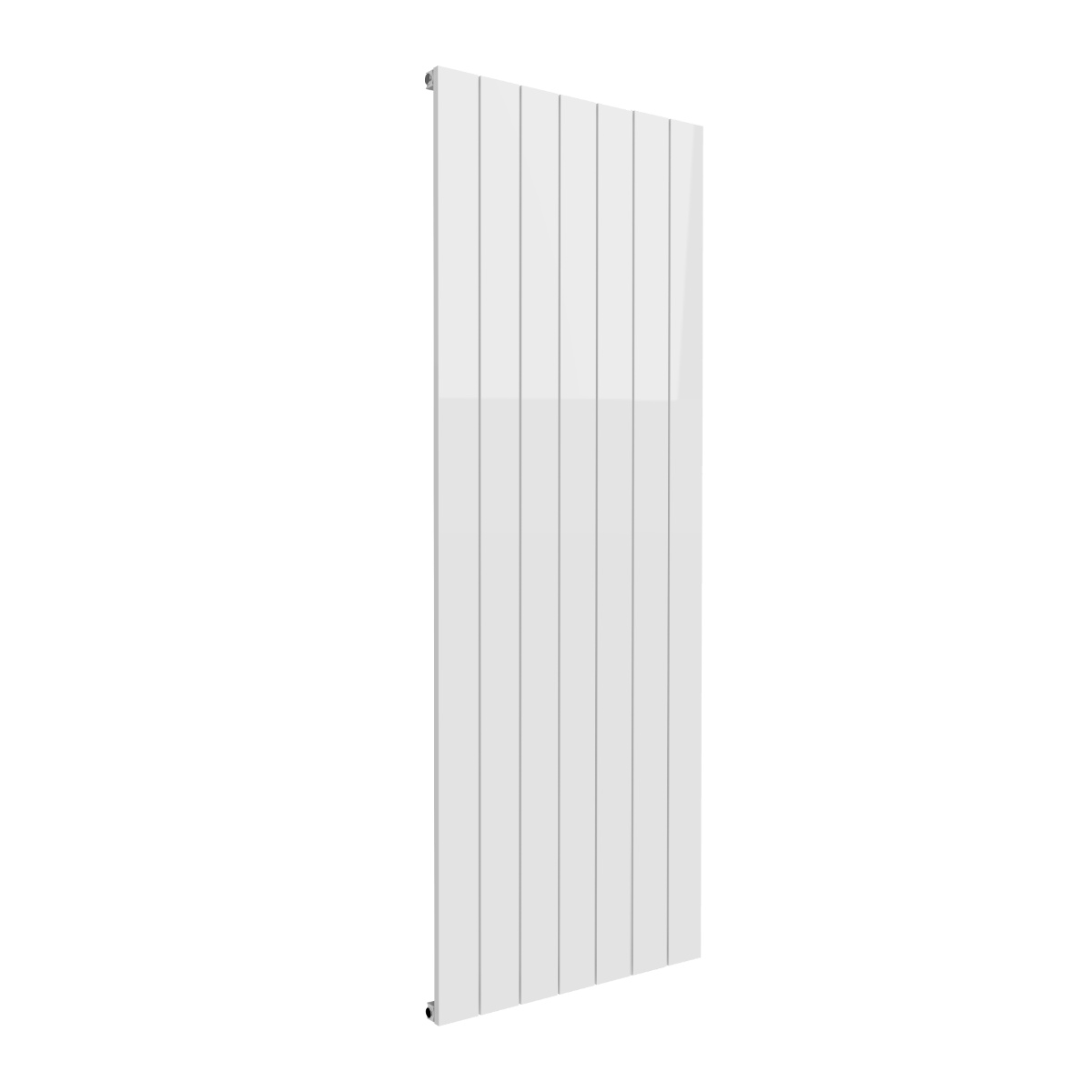

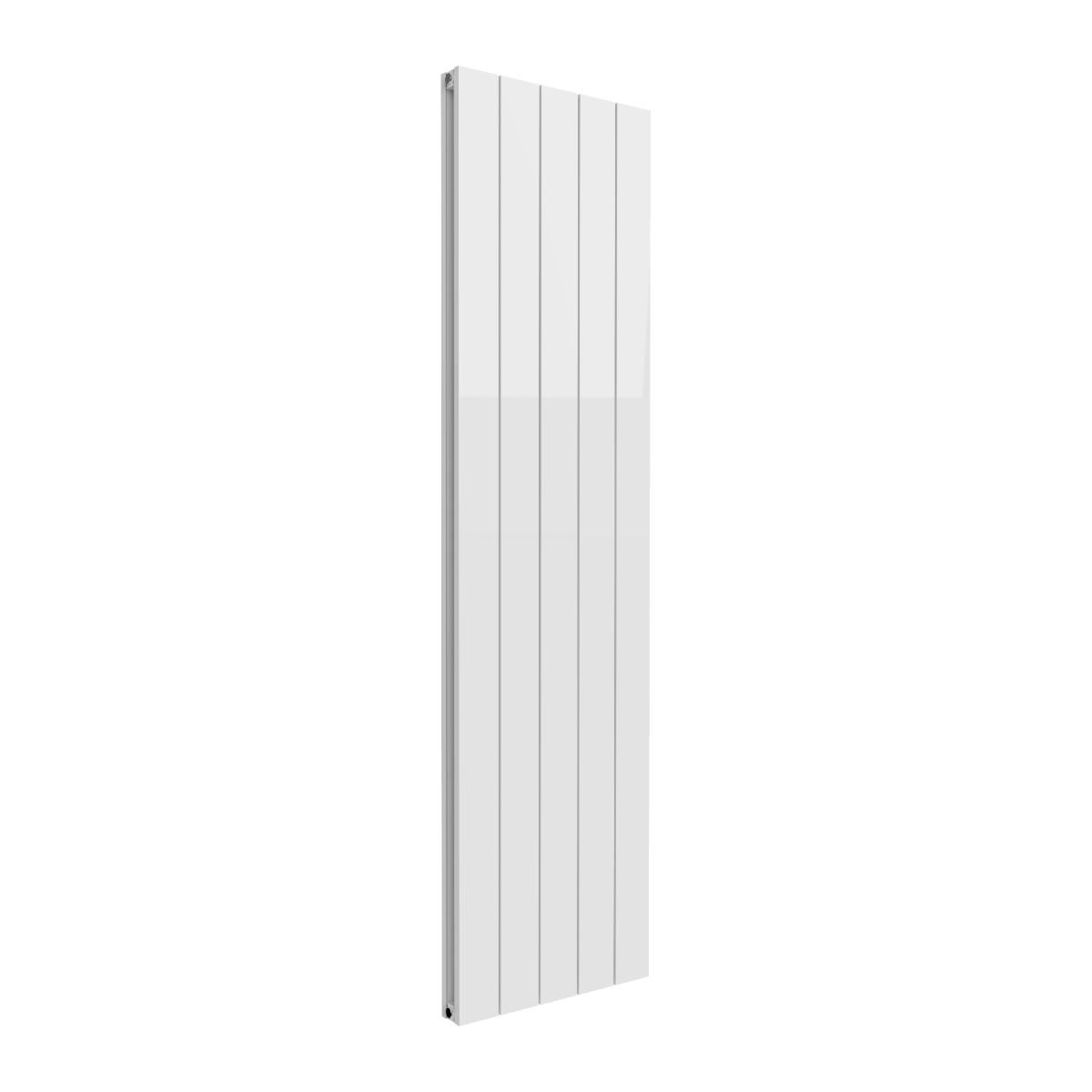

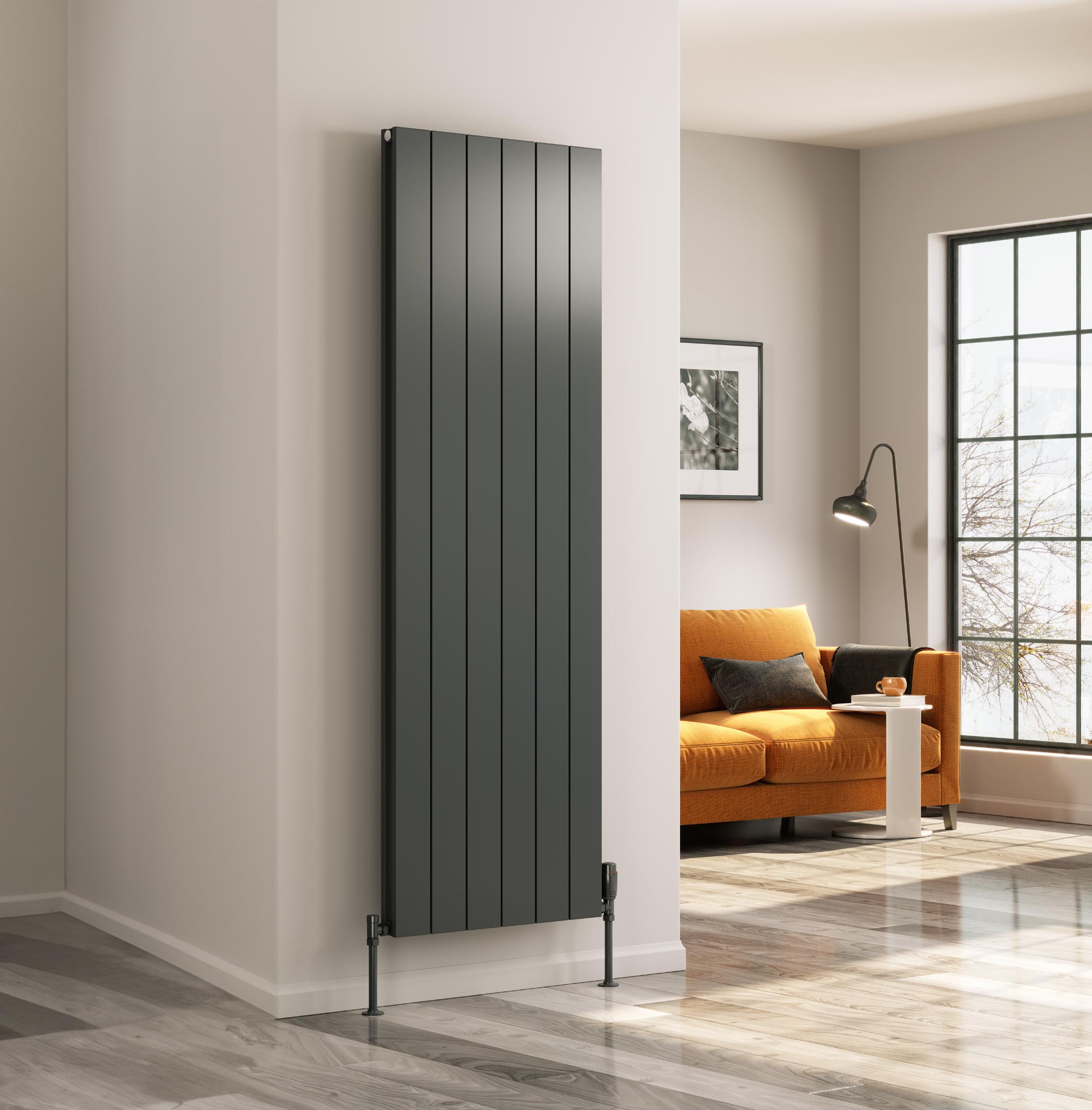

Casina Vertical Aluminium Radiator

5 Years Guarantee

Material: Aluminium

Central Heating

The Casina Vertical Radiator combines modern elegance with exceptional performance, featuring a sleek vertical flat panel design in anthracite or white, durable aluminium construction, and impressive heat output, backed confidently by a 5-year guarantee.

Available in 2 colours and 5 sizes
Durable Aluminium Construction
5 Years Guarantee

white
anthracite

Installation Guide

Product Data Sheet

1800mm HEIGHT 280mm WIDTH

Model/SKU	Panels	Colour	Fuel Type	Lead Time	RRP Ex. VAT	RRP Inc. VAT
A-CSC18028SW	Single	White	Central Heating	Next Working Day	£290.00	£348.00
A-CSC18028SA	Single	Anthracite	Central Heating	Next Working Day	£290.00	£348.00
A-CSL180028AD	Double	Anthracite	Central Heating	Next Working Day	£394.00	£472.80
A-CSL180028WD	Double	White	Central Heating	Next Working Day	£394.00	£472.80

1800mm HEIGHT 375mm WIDTH

Model/SKU	Panels	Colour	Fuel Type	Lead Time	RRP Ex. VAT	RRP Inc. VAT
A-CSC18037SW	Single	White	Central Heating	Next Working Day	£336.00	£403.20
A-CSC18037SA	Single	Anthracite	Central Heating	Next Working Day	£336.00	£403.20
A-CSL180037AD	Double	Anthracite	Central Heating	Next Working Day	£496.00	£595.20
A-CSL180037WD	Double	White	Central Heating	Next Working Day	£496.00	£595.20

1800mm HEIGHT 470mm WIDTH

Model/SKU	Panels	Colour	Fuel Type	Lead Time	RRP Ex. VAT	RRP Inc. VAT
A-CSC18047SW	Single	White	Central Heating	Next Working Day	£390.00	£468.00
A-CSC18047SA	Single	Anthracite	Central Heating	Next Working Day	£390.00	£468.00
A-CSL180047AD	Double	Anthracite	Central Heating	Next Working Day	£598.00	£717.60
A-CSL180047WD	Double	White	Central Heating	Next Working Day	£598.00	£717.60

1800mm HEIGHT 565mm WIDTH

Model/SKU	Panels	Colour	Fuel Type	Lead Time	RRP Ex. VAT	RRP Inc. VAT
A-CSC18056SW	Single	White	Central Heating	Next Working Day	£450.00	£540.00
A-CSC18056SA	Single	Anthracite	Central Heating	Next Working Day	£450.00	£540.00
A-CSL180056AD	Double	Anthracite	Central Heating	Next Working Day	£698.00	£837.60
A-CSL180056WD	Double	White	Central Heating	Next Working Day	£698.00	£837.60

1800mm HEIGHT 660mm WIDTH

Model/SKU	Panels	Colour	Fuel Type	Lead Time	RRP Ex. VAT	RRP Inc. VAT
A-CSC18066SW	Single	White	Central Heating	Next Working Day	£530.00	£636.00
A-CSC18066SA	Single	Anthracite	Central Heating	Next Working Day	£530.00	£636.00
A-CSL180066AD	Double	Anthracite	Central Heating	Next Working Day	£798.00	£957.60
A-CSL180066WD	Double	White	Central Heating	Next Working Day	£798.00	£957.60

Technical Data
Heat Outputs
Downloads
Stock Availability

Technical

Measurements

Height (mm)	Width (mm)	Panels	Pipe Centres (mm)	Wall to Pipe Centres (mm)	Wall Distance (mm)	Dry Weight	No. Bars
1800	280	Single	280	35	65	-	3
1800	375	Single	375	35	65	-	4
1800	470	Single	470	35	65	-	5
1800	565	Single	565	35	65	-	6
1800	660	Single	660	35	65	-	7
1800	375	Double	375	57	87	-	8
1800	280	Double	280	57	87	-	6
1800	470	Double	470	57	87	-	10
1800	660	Double	660	57	87	-	14
1800	565	Double	565	57	87	-	12

For pipe centre measurement including valves, add 90mm

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU	Height (mm)	Width (mm)	Colour	Heat Outputs ΔT50°C		Heat Outputs ΔT60°C
Model/SKU	Height (mm)	Width (mm)	Colour	BTU	Watts	BTU	Watts
A-CSC18028SW	1800	280	White	2214	649	2834	831
A-CSC18028SA	1800	280	Anthracite	2214	649	2834	831
A-CSC18037SW	1800	375	White	2952	866	3779	1108
A-CSC18037SA	1800	375	Anthracite	2952	866	3779	1108
A-CSC18047SW	1800	470	White	3691	1082	4724	1385
A-CSC18047SA	1800	470	Anthracite	3691	1082	4724	1385
A-CSC18056SW	1800	565	White	4428	1299	5668	1662
A-CSC18056SA	1800	565	Anthracite	4428	1299	5668	1662
A-CSC18066SW	1800	660	White	5166	1515	6613	1939
A-CSC18066SA	1800	660	Anthracite	5166	1515	6613	1939
A-CSL180037AD	1800	375	Anthracite	4103	1203	5252	1540
A-CSL180037WD	1800	375	White	4103	1203	5252	1540
A-CSL180028AD	1800	280	Anthracite	3077	902	3939	1155
A-CSL180028WD	1800	280	White	3077	902	3939	1155
A-CSL180047AD	1800	470	Anthracite	5130	1504	6566	1926
A-CSL180047WD	1800	470	White	5130	1504	6566	1926
A-CSL180066AD	1800	660	Anthracite	7181	2106	9192	2696
A-CSL180066WD	1800	660	White	7181	2106	9192	2696
A-CSL180056AD	1800	565	Anthracite	6155	1805	7879	2311
A-CSL180056WD	1800	565	White	6155	1805	7879	2311

Stock Availability

Model/SKU	Height (mm)	Width (mm)	Colour	RRP Ex. VAT	Available Stock
A-CSC18028SW	1800	280	White	£290.00	Log in to see stock
A-CSC18028SA	1800	280	Anthracite	£290.00	Log in to see stock
A-CSC18037SW	1800	375	White	£336.00	Log in to see stock
A-CSC18037SA	1800	375	Anthracite	£336.00	Log in to see stock
A-CSC18047SW	1800	470	White	£390.00	Log in to see stock
A-CSC18047SA	1800	470	Anthracite	£390.00	Log in to see stock
A-CSC18056SW	1800	565	White	£450.00	Log in to see stock
A-CSC18056SA	1800	565	Anthracite	£450.00	Log in to see stock
A-CSC18066SW	1800	660	White	£530.00	Log in to see stock
A-CSC18066SA	1800	660	Anthracite	£530.00	Log in to see stock
A-CSL180037AD	1800	375	Anthracite	£496.00	Log in to see stock
A-CSL180037WD	1800	375	White	£496.00	Log in to see stock
A-CSL180028AD	1800	280	Anthracite	£394.00	Log in to see stock
A-CSL180028WD	1800	280	White	£394.00	Log in to see stock
A-CSL180047AD	1800	470	Anthracite	£598.00	Log in to see stock
A-CSL180047WD	1800	470	White	£598.00	Log in to see stock
A-CSL180066AD	1800	660	Anthracite	£798.00	Log in to see stock
A-CSL180066WD	1800	660	White	£798.00	Log in to see stock
A-CSL180056AD	1800	565	Anthracite	£698.00	Log in to see stock
A-CSL180056WD	1800	565	White	£698.00	Log in to see stock
