Coredo Mild Steel Radiator

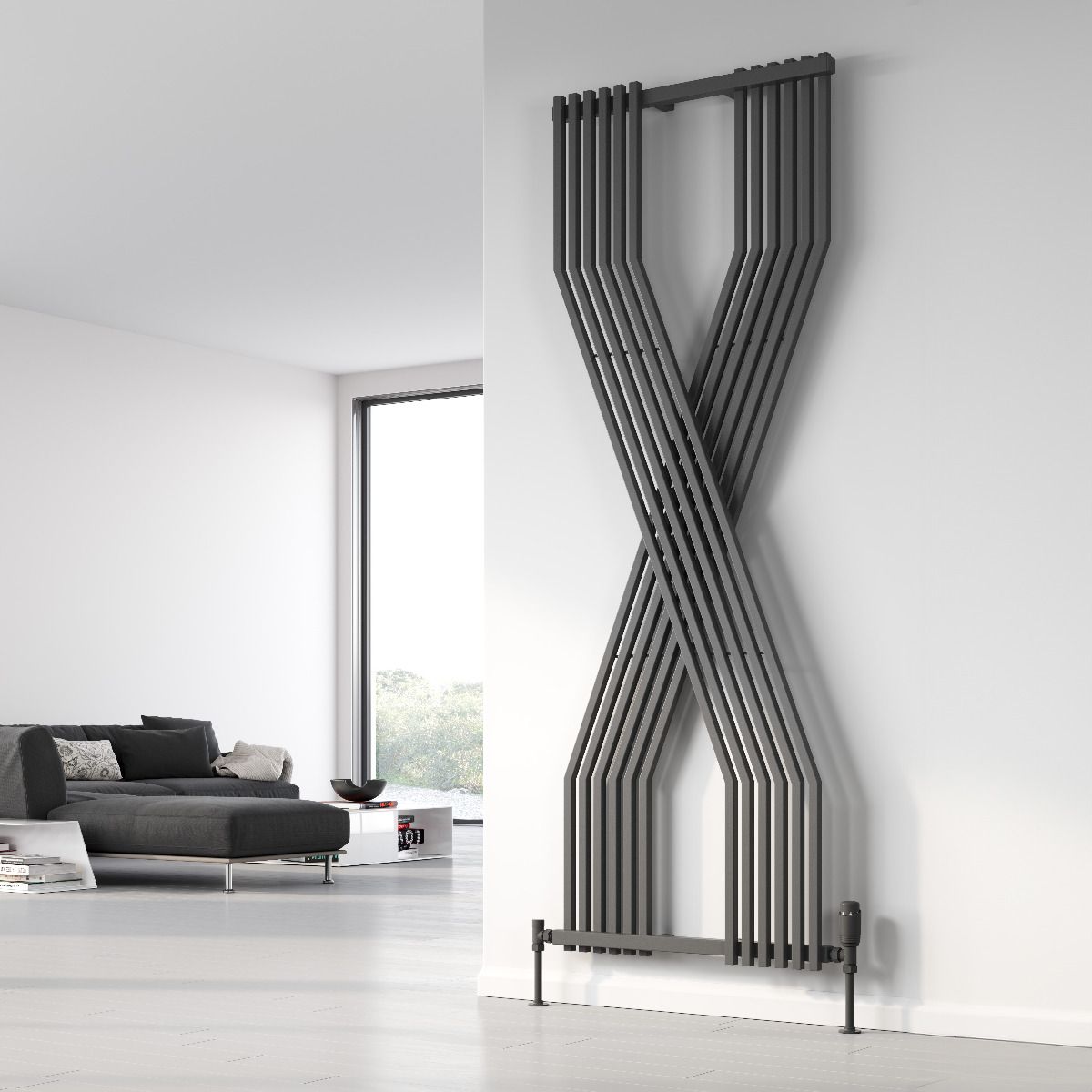

The Reina Coredo Modern X Shaped Vertical Designer Radiator features a striking crossover design with square tubes, offering a bold statement for any space. Crafted from durable steel, it provides superb heat output and is available in a selection of stunning finishes, including anthracite, chrome, and white. Backed by a 5-year guarantee, the Coredo combines innovative design with exceptional performance, making it the perfect choice for those seeking style and efficiency in their heating solutions.
- Available in 3 colours and 1 size
- Durable Mild Steel Construction
- 5 Years Guarantee
-
chrome
-
anthracite
-
white
3D & AR Visualiser
The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 1760 | 620 | 620 | 67-82 | 97-112 | - | 12 |
For pipe centre measurement including valves, add 90mm
Technical Drawing
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT60°C | ||
|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | ||||
| RND-CRD1862C | 1760 | 620 | Chrome |
2935 | 861 | 3757 | 1102 |
| RND-CRD1862A | 1760 | 620 | Anthracite |
4345 | 1274 | 5561 | 1631 |
| RND-CRD1862W | 1760 | 620 | White |
4345 | 1274 | 5561 | 1631 |
Technical Drawings
Cutout Product Images
Roomset Product Images
| Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|
| RND-CRD1862C | 1760 | 620 |
Chrome |
£695.00 | Log in to see stock |
| RND-CRD1862A | 1760 | 620 |
Anthracite |
£495.00 | Log in to see stock |
| RND-CRD1862W | 1760 | 620 |
White |
£495.00 | Log in to see stock |
