Rienza Aluminium Radiator
5 Years Guarantee
Material: Aluminium
Central Heating
Introducing the Rienza Radiator – a perfect blend of style and practicality, designed to complement any interior effortlessly. Available in timeless white or sophisticated anthracite, the Rienza radiator seamlessly enhances your space while providing exceptional functionality. Its sleek, contemporary design not only adds a touch of elegance but also ensures ample space around it, making it an ideal choice for both aesthetic and practical needs.
- Available in 2 colours and 5 sizes
- Durable Aluminium Construction
- 5 Years Guarantee
-
white
-
anthracite
565mm HEIGHT 600mm WIDTH
565mm HEIGHT 800mm WIDTH
565mm HEIGHT 1000mm WIDTH
565mm HEIGHT 1200mm WIDTH
565mm HEIGHT 1400mm WIDTH
Technical
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 565 | 600 | 600 | 51 | 90 | - | 6 |
| 565 | 800 | 800 | 51 | 90 | - | 6 |
| 565 | 1000 | 1000 | 51 | 90 | - | 6 |
| 565 | 1200 | 1200 | 51 | 90 | - | 6 |
| 565 | 1400 | 1400 | 51 | 90 | - | 6 |
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT60°C | ||
|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | ||||
| A-RNZ56060W | 565 | 600 | White |
1601 | 469 | 2049 | 601 |
| A-RNZ56060A | 565 | 600 | Anthracite |
1601 | 469 | 2049 | 601 |
| A-RNZ56080W | 565 | 800 | White |
2092 | 614 | 2678 | 785 |
| A-RNZ56080A | 565 | 800 | Anthracite |
2092 | 614 | 2678 | 785 |
| A-RNZ56100W | 565 | 1000 | White |
2584 | 758 | 3307 | 970 |
| A-RNZ56100A | 565 | 1000 | Anthracite |
2584 | 758 | 3307 | 970 |
| A-RNZ56120W | 565 | 1200 | White |
3073 | 901 | 3933 | 1153 |
| A-RNZ56120A | 565 | 1200 | Anthracite |
3073 | 901 | 3933 | 1153 |
| A-RNZ56140W | 565 | 1400 | White |
3563 | 1045 | 4561 | 1338 |
| A-RNZ56140A | 565 | 1400 | Anthracite |
3563 | 1045 | 4561 | 1338 |
Downloads

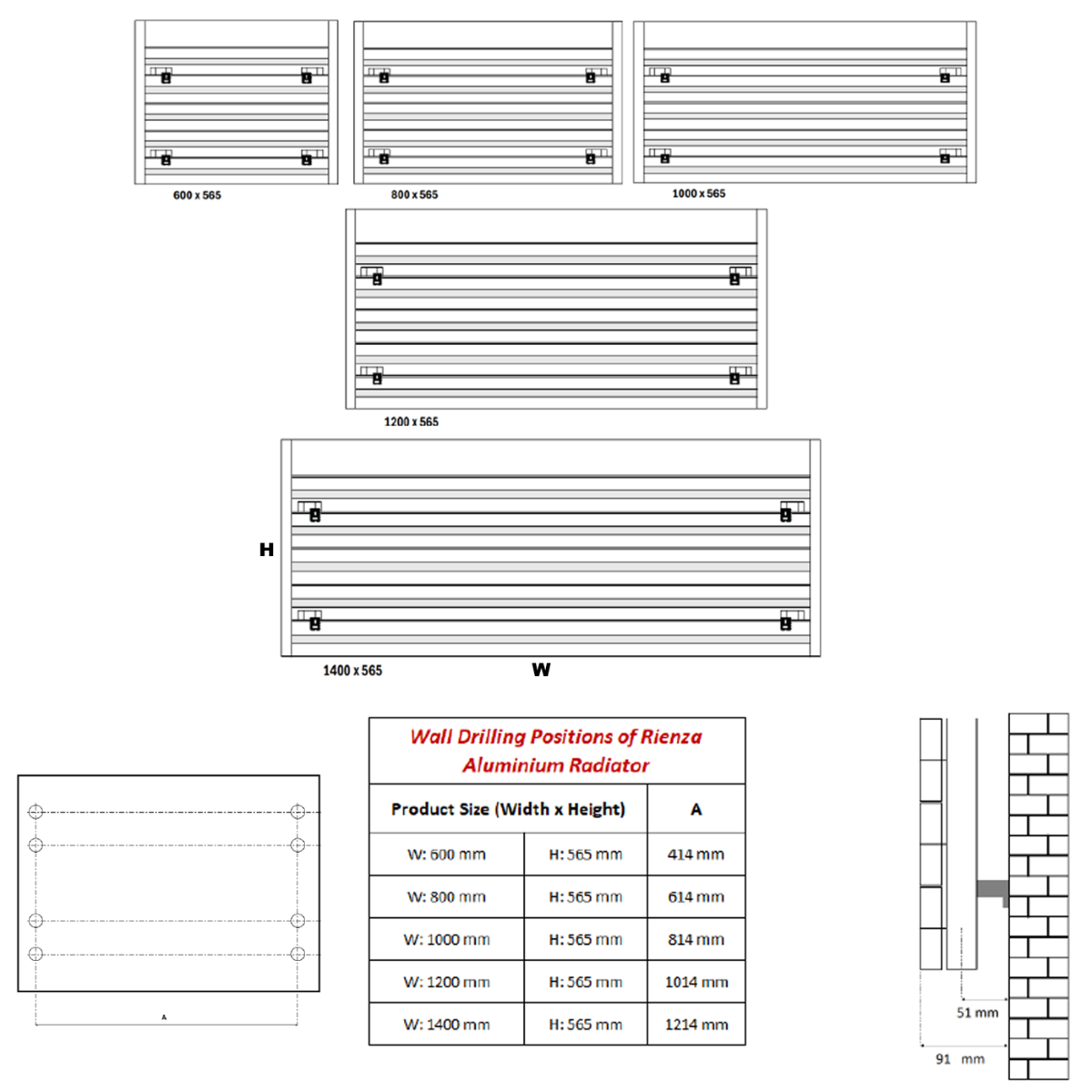

Technical Drawings
Cutout Product Images
565 x 600 White
0.46 MB

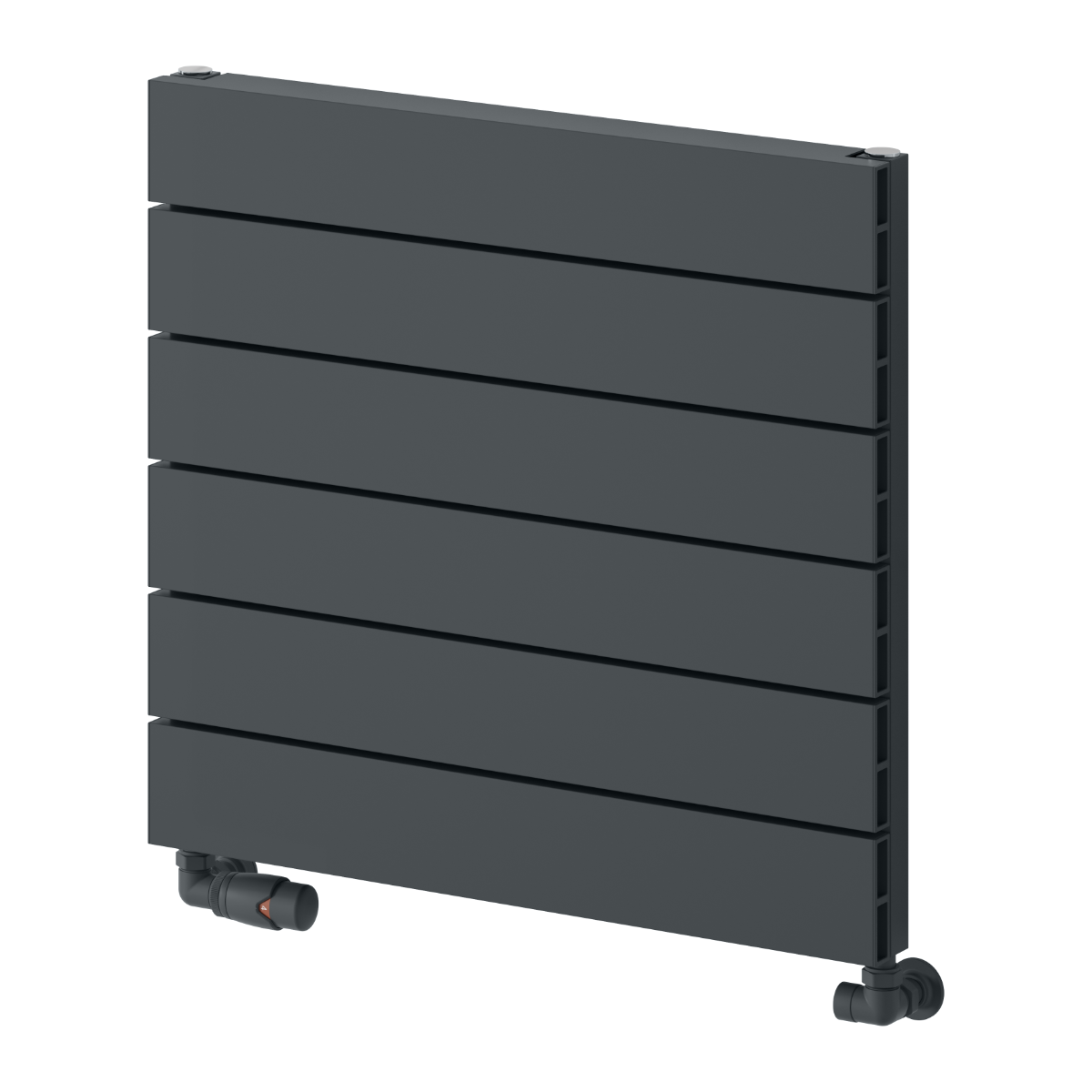

565 x 600 Anthracite
0.33 MB
565 x 800 White
0.56 MB

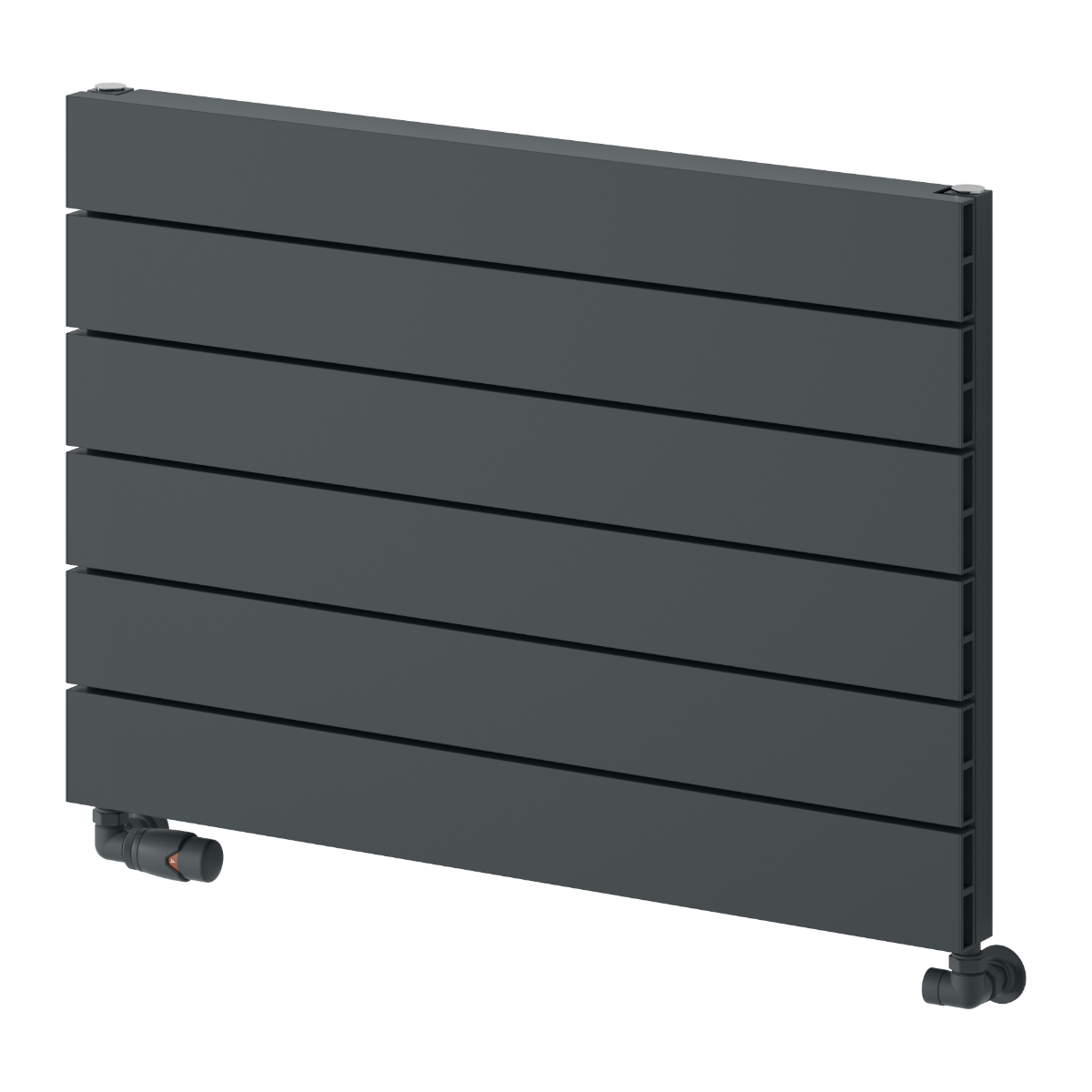

565 x 800 Anthracite
0.41 MB

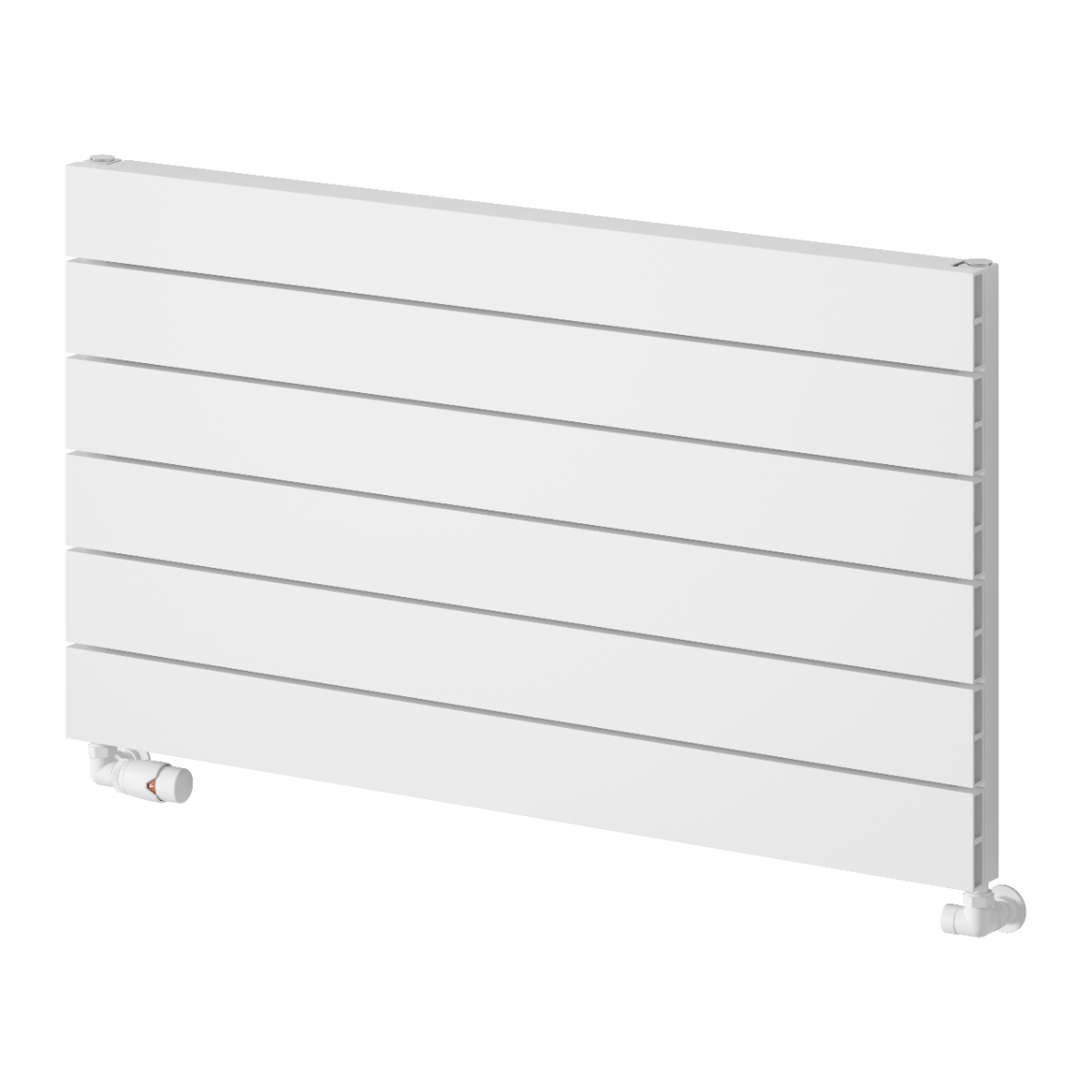

565 x 1000 White
0.46 MB

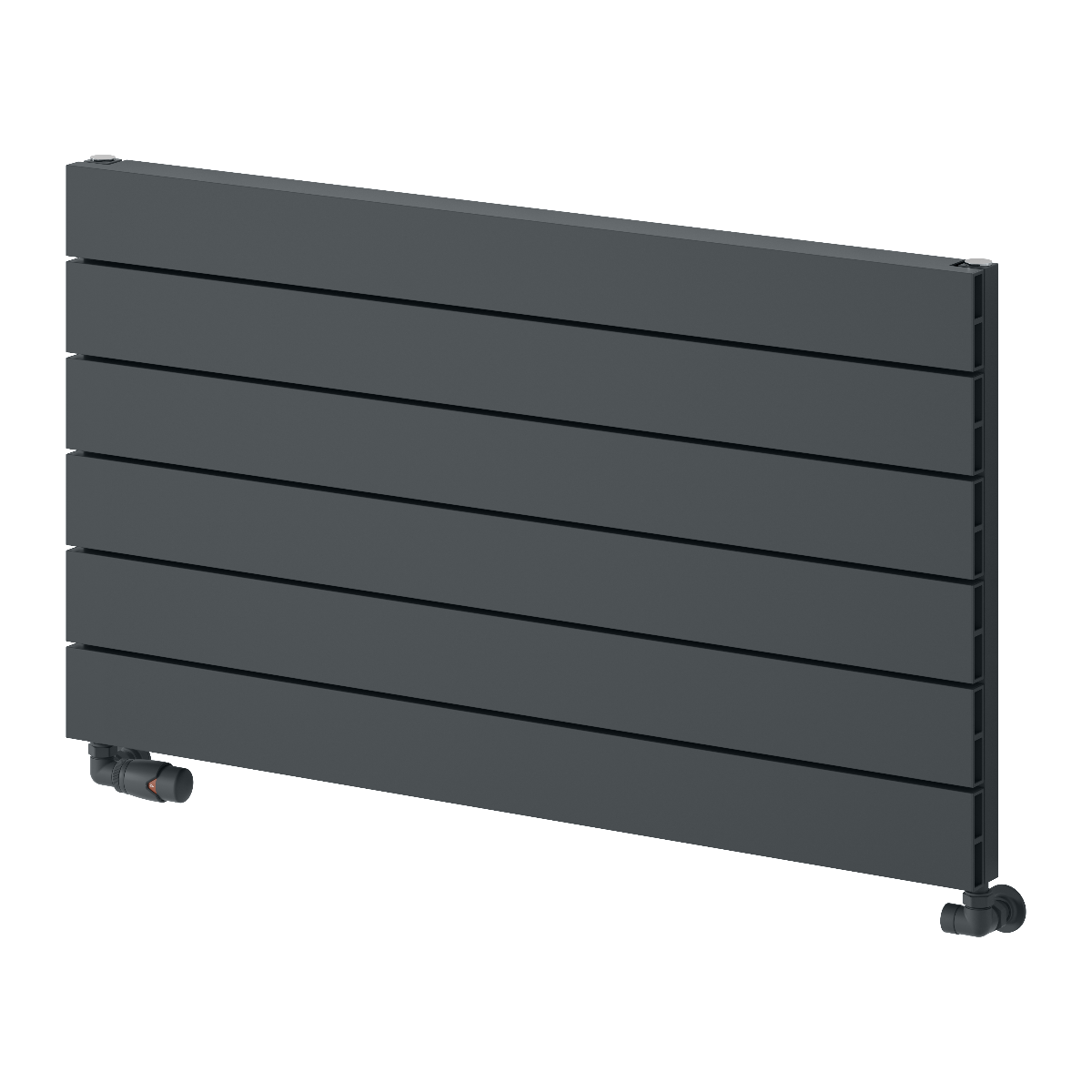

565 x 1000 Anthracite
0.3 MB

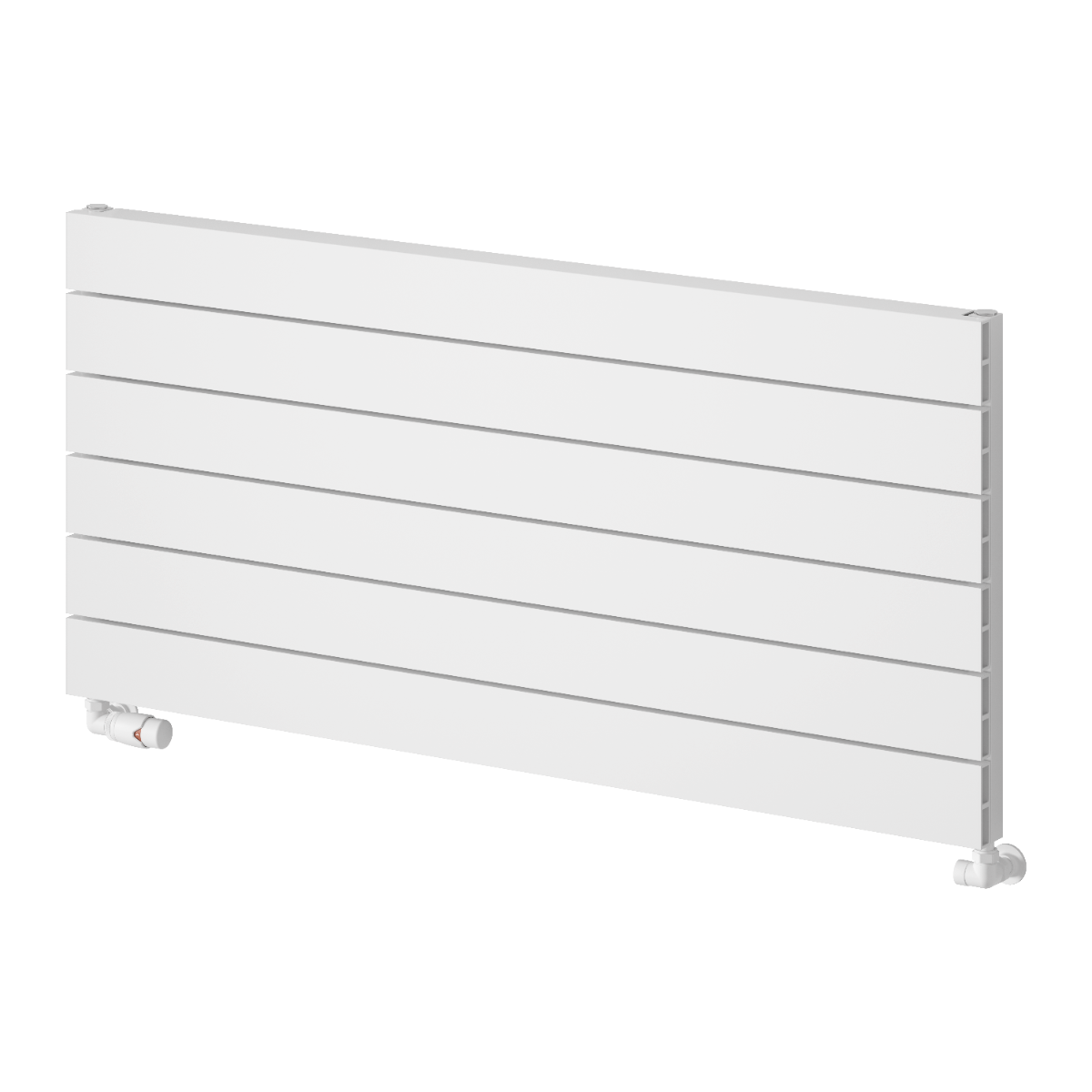

565 x 1200 White
0.4 MB

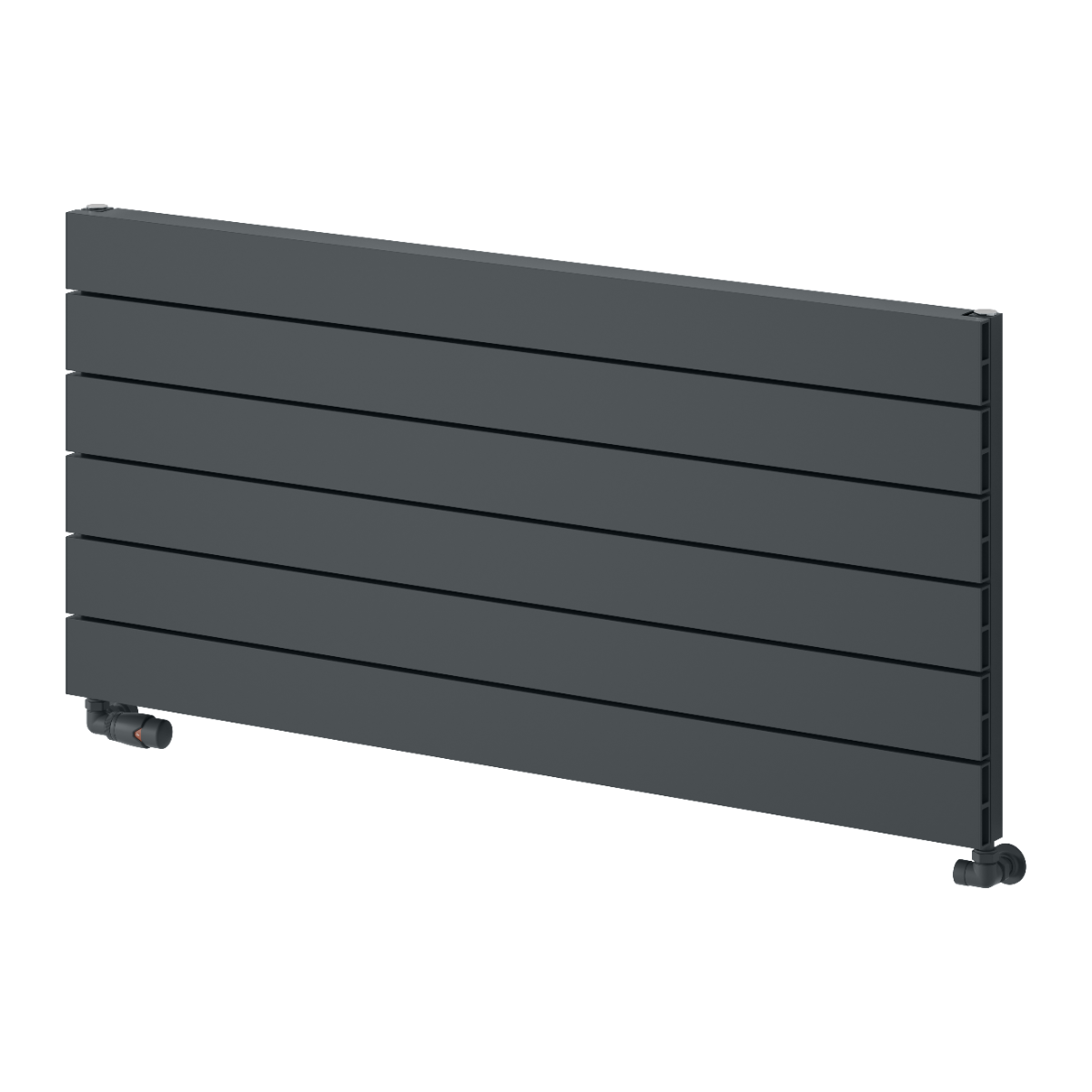

565 x 1200 Anthracite
0.27 MB
565 x 1400 White
0.43 MB
565 x 1400 Anthracite
0.28 MB
Roomset Product Images
Stock Availability
| Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|
| A-RNZ56060W | 565 | 600 |
White |
£294.00 | Log in to see stock |
| A-RNZ56060A | 565 | 600 |
Anthracite |
£294.00 | Log in to see stock |
| A-RNZ56080W | 565 | 800 |
White |
£342.00 | Log in to see stock |
| A-RNZ56080A | 565 | 800 |
Anthracite |
£342.00 | Log in to see stock |
| A-RNZ56100W | 565 | 1000 |
White |
£390.00 | Log in to see stock |
| A-RNZ56100A | 565 | 1000 |
Anthracite |
£390.00 | Log in to see stock |
| A-RNZ56120W | 565 | 1200 |
White |
£426.00 | Log in to see stock |
| A-RNZ56120A | 565 | 1200 |
Anthracite |
£426.00 | Log in to see stock |
| A-RNZ56140W | 565 | 1400 |
White |
£480.00 | Log in to see stock |
| A-RNZ56140A | 565 | 1400 |
Anthracite |
£480.00 | Log in to see stock |
